Emulate scrollable screenshot #29

New Issue

Open

opened 2025-01-21 21:13:39 +01:00 by Benjamin_Loison · 22 comments

Benjamin_Loison commented 2025-01-21 21:13:39 +01:00

Owner

Copy Link

Copy Source

As not possible on Xiaomi Mi A3 stock ROM.

Would help Benjamin_Loison/WhatsApp/issues/15.

+4

As not possible on Xiaomi Mi A3 stock ROM. Would help [Benjamin_Loison/WhatsApp/issues/15](https://codeberg.org/Benjamin_Loison/WhatsApp/issues/15). +4

Benjamin_Loison commented 2025-03-10 15:37:23 +01:00

Author

Owner

Copy Link

Copy Source

Related to Benjamin-Loison/android/issues/59#issuecomment-2629144502.

Related to [Benjamin-Loison/android/issues/59#issuecomment-2629144502](https://github.com/Benjamin-Loison/android/issues/59#issuecomment-2629144502).

Benjamin_Loison commented 2025-05-08 15:04:57 +02:00

Author

Owner

Copy Link

Copy Source

With Google flavor long press of power button results in voice assistant, see Benjamin_Loison/Voice_assistant/issues/7#issue-1475654.

DuckDuckGo and Google search adb scrolling screenshot.

The Stack Overflow question 72804636 and the Android Stack Exchange question 35012 raise this question, the latter has answers but nothing absolutely clean to me.

scrollscreenshot has 719 stars and last commit was 10 years ago.

With Google flavor long press of power button results in voice assistant, see [Benjamin_Loison/Voice_assistant/issues/7#issue-1475654](https://codeberg.org/Benjamin_Loison/Voice_assistant/issues/7#issue-1475654). DuckDuckGo and Google search *adb scrolling screenshot*. [The Stack Overflow question 72804636](https://stackoverflow.com/q/72804636) and [the Android Stack Exchange question 35012](https://android.stackexchange.com/q/35012) raise this question, the latter has answers but nothing absolutely clean to me. [scrollscreenshot](https://github.com/PGSSoft/scrollscreenshot) has 719 stars and last commit was 10 years ago.

Benjamin_Loison commented 2025-05-08 15:06:16 +02:00

Author

Owner

Copy Link

Copy Source

adb exec-out screencap --help

Output:

usage: screencap [-ahp] [-d display-id] [FILENAME]
   -h: this message
   -a: captures all the active displays. This appends an integer postfix to the FILENAME.
       e.g., FILENAME_0.png, FILENAME_1.png. If both -a and -d are given, it ignores -d.
   -d: specify the display ID to capture (If the id is not given, it defaults to 4619827259835644672)
       see "dumpsys SurfaceFlinger --display-id" for valid display IDs.
   -p: outputs in png format.
   --hint-for-seamless If set will use the hintForSeamless path in SF

If FILENAME ends with .png it will be saved as a png.
If FILENAME is not given, the results will be printed to stdout.

```bash adb exec-out screencap --help ``` <details> <summary>Output:</summary> ``` usage: screencap [-ahp] [-d display-id] [FILENAME] -h: this message -a: captures all the active displays. This appends an integer postfix to the FILENAME. e.g., FILENAME_0.png, FILENAME_1.png. If both -a and -d are given, it ignores -d. -d: specify the display ID to capture (If the id is not given, it defaults to 4619827259835644672) see "dumpsys SurfaceFlinger --display-id" for valid display IDs. -p: outputs in png format. --hint-for-seamless If set will use the hintForSeamless path in SF If FILENAME ends with .png it will be saved as a png. If FILENAME is not given, the results will be printed to stdout. ``` </details>

Benjamin_Loison commented 2025-05-08 15:07:19 +02:00

Author

Owner

Copy Link

Copy Source

adb exec-out screencap --hint-for-seamless -p > test.png

does not have the scrolling aspect, but maybe the Safety app Features tab does not support it.

```bash adb exec-out screencap --hint-for-seamless -p > test.png ``` does not have the scrolling aspect, but maybe the *Safety* app *Features* tab does not support it.

Benjamin_Loison commented 2025-05-08 15:13:34 +02:00

Author

Owner

Copy Link

Copy Source

Should investigate https://www.reddit.com/r/NothingTech/comments/191dix2/how_to_take_scrolling_screenshot/

Should investigate https://www.reddit.com/r/NothingTech/comments/191dix2/how_to_take_scrolling_screenshot/

Benjamin_Loison commented 2025-06-25 12:21:22 +02:00

Author

Owner

Copy Link

Copy Source

Related to Benjamin_Loison/Backup_Android_apps/issues/26.

Related to [Benjamin_Loison/Backup_Android_apps/issues/26](https://codeberg.org/Benjamin_Loison/Backup_Android_apps/issues/26).

Benjamin_Loison commented 2025-08-21 23:03:58 +02:00

Author

Owner

Copy Link

Copy Source

Related to Benjamin_Loison/One_UI/issues/2.

Related to [Benjamin_Loison/One_UI/issues/2](https://codeberg.org/Benjamin_Loison/One_UI/issues/2).

Benjamin_Loison commented 2025-09-06 19:13:57 +02:00

Author

Owner

Copy Link

Copy Source

adb shell input keyevent KEYCODE_POWER

does not return anything and (un)locks the screen.

```bash adb shell input keyevent KEYCODE_POWER ``` does not return anything and (un)locks the screen.

Benjamin_Loison commented 2025-09-06 19:16:17 +02:00

Author

Owner

Copy Link

Copy Source

adb shell input -h

Output:

Usage: input [<source>] [-d DISPLAY_ID] <command> [<arg>...]

The sources are:
      touchnavigation
      touchscreen
      joystick
      stylus
      touchpad
      gamepad
      dpad
      mouse
      keyboard
      trackball

-d: specify the display ID.
      (Default: -1 for key event, 0 for motion event if not specified.)
The commands and default sources are:
      text <string> (Default: touchscreen)
      keyevent [--longpress|--doubletap] <key code number or name> ... (Default: keyboard)
      tap <x> <y> (Default: touchscreen)
      swipe <x1> <y1> <x2> <y2> [duration(ms)] (Default: touchscreen)
      draganddrop <x1> <y1> <x2> <y2> [duration(ms)] (Default: touchscreen)
      press (Default: trackball)
      roll <dx> <dy> (Default: trackball)
      motionevent <DOWN|UP|MOVE|CANCEL> <x> <y> (Default: touchscreen)
      keycombination [-t duration(ms)] <key code 1> <key code 2> ... (Default: keyboard, the key order is important here.)

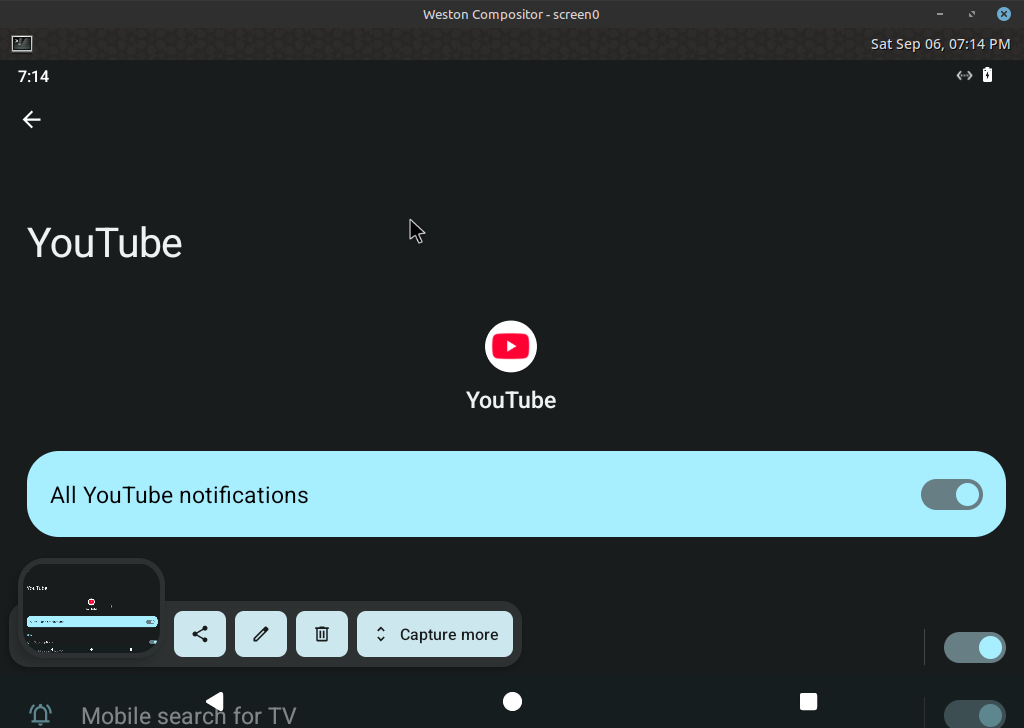

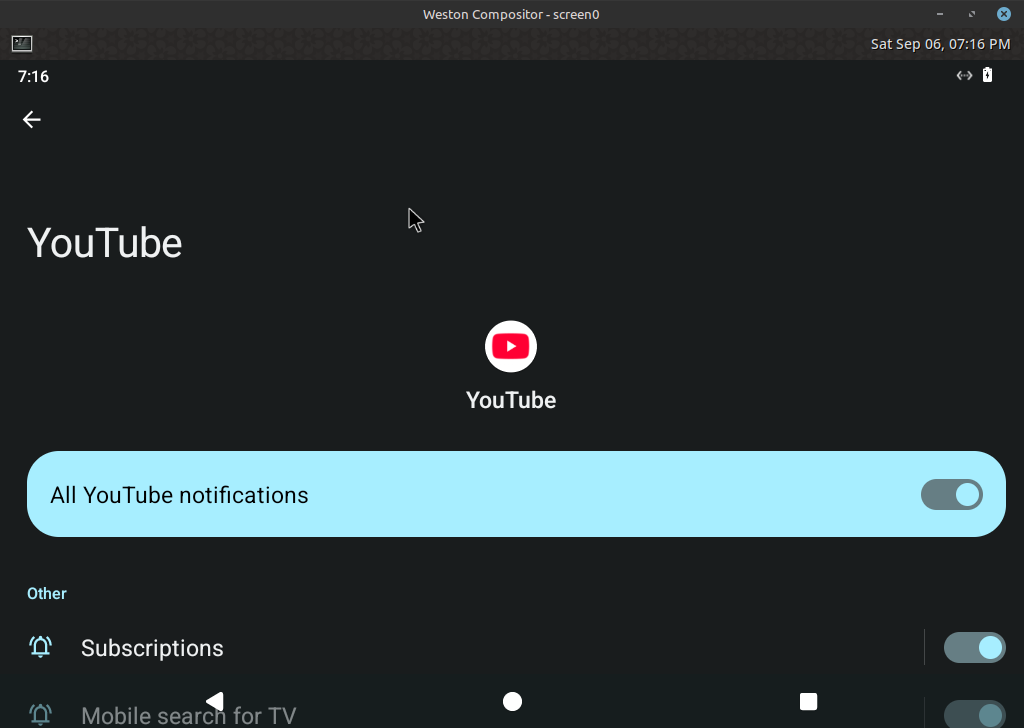

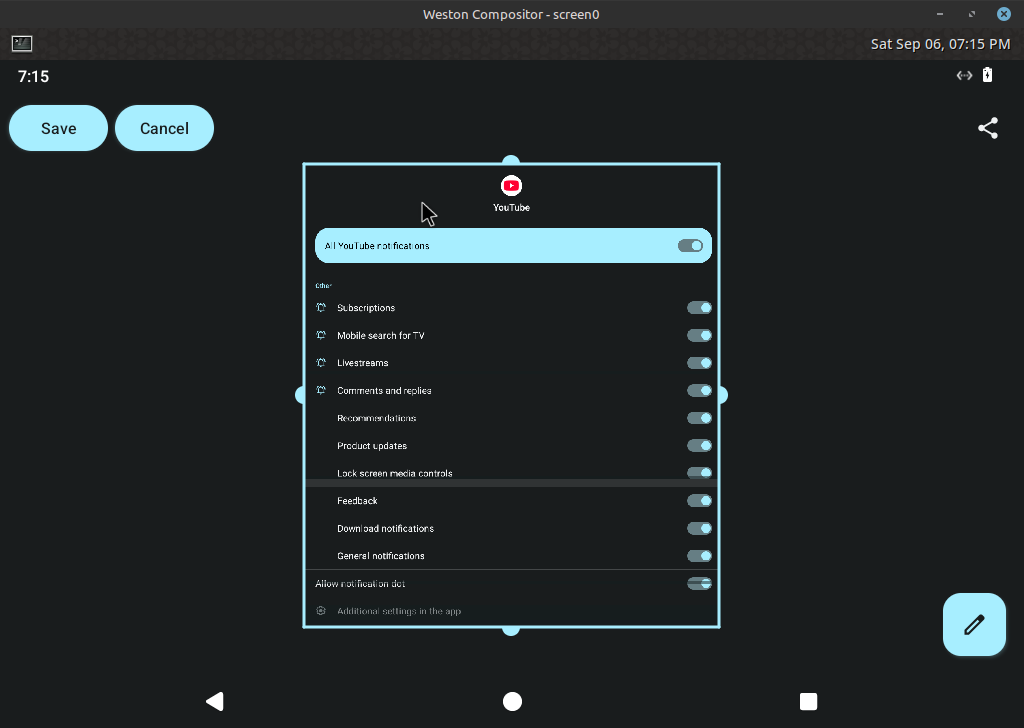

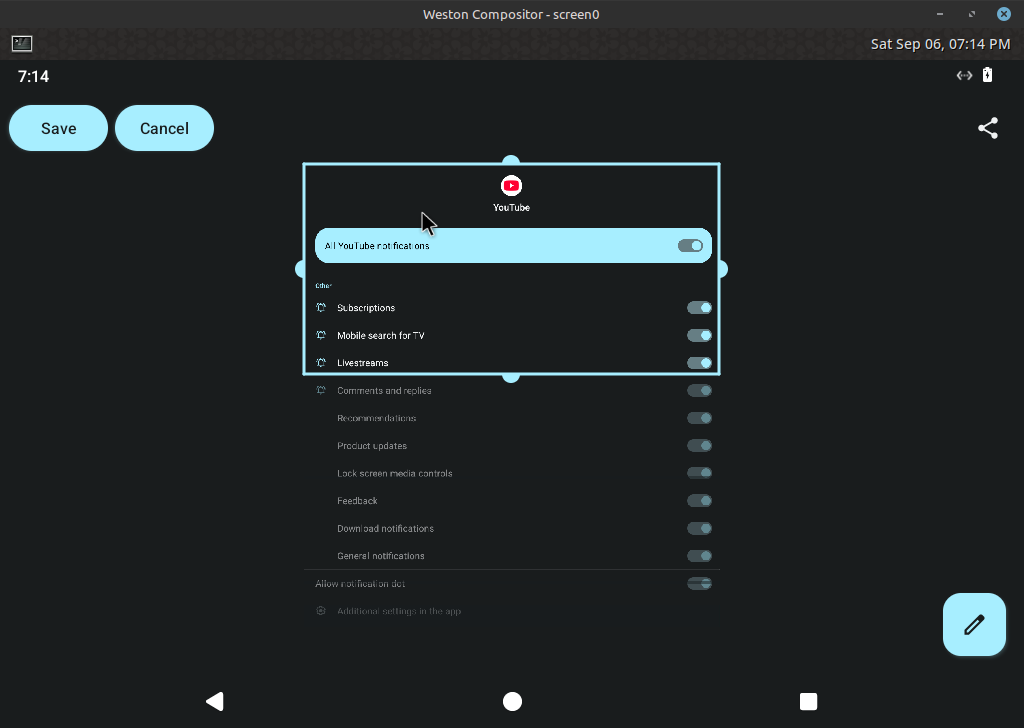

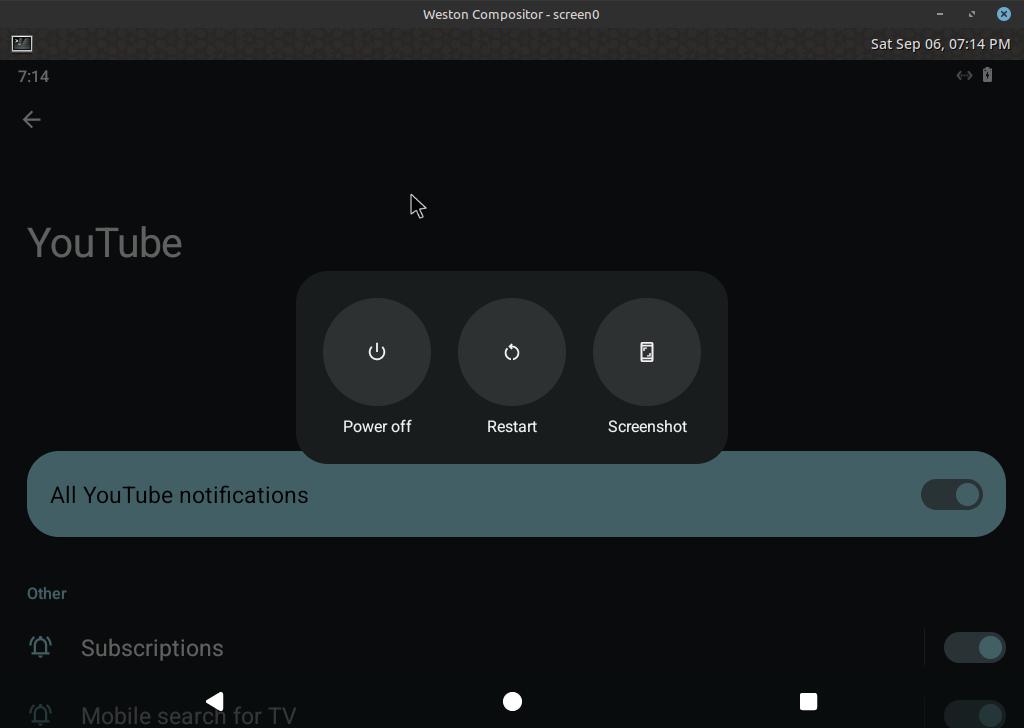

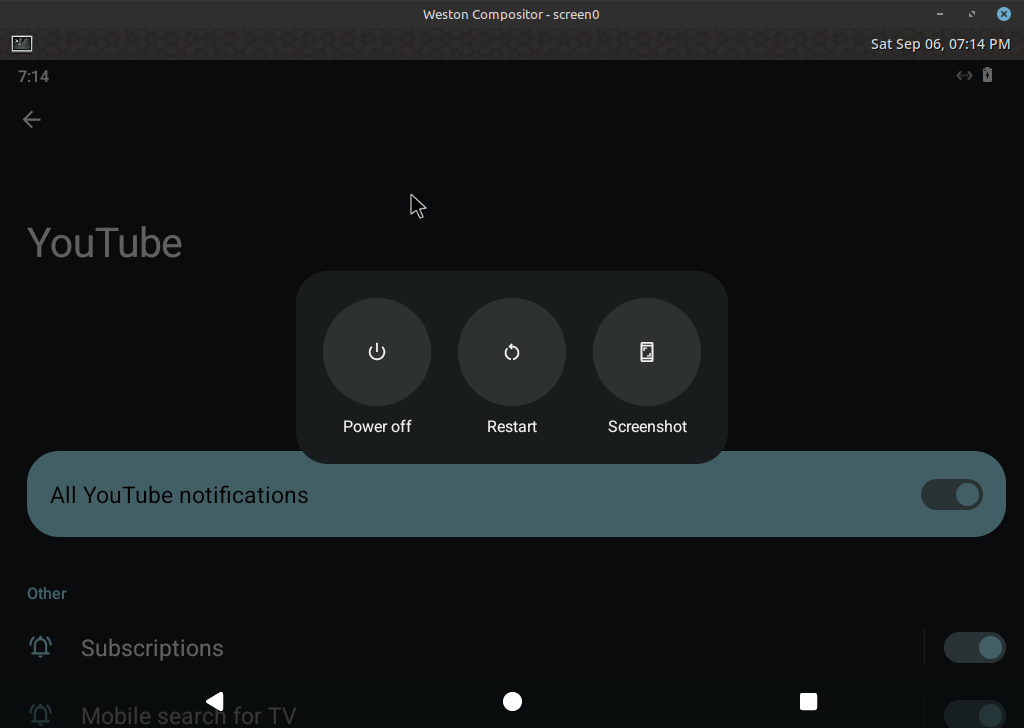

adb shell input keyevent --longpress KEYCODE_POWER

does not return anything, but works quite as wanted:

Related to Benjamin_Loison/YouTube/issues/1.

``` adb shell input -h ``` <details> <summary>Output:</summary> ``` Usage: input [<source>] [-d DISPLAY_ID] <command> [<arg>...] The sources are: touchnavigation touchscreen joystick stylus touchpad gamepad dpad mouse keyboard trackball -d: specify the display ID. (Default: -1 for key event, 0 for motion event if not specified.) The commands and default sources are: text <string> (Default: touchscreen) keyevent [--longpress|--doubletap] <key code number or name> ... (Default: keyboard) tap <x> <y> (Default: touchscreen) swipe <x1> <y1> <x2> <y2> [duration(ms)] (Default: touchscreen) draganddrop <x1> <y1> <x2> <y2> [duration(ms)] (Default: touchscreen) press (Default: trackball) roll <dx> <dy> (Default: trackball) motionevent <DOWN|UP|MOVE|CANCEL> <x> <y> (Default: touchscreen) keycombination [-t duration(ms)] <key code 1> <key code 2> ... (Default: keyboard, the key order is important here.) ``` </details>  ```bash adb shell input keyevent --longpress KEYCODE_POWER ``` does not return anything, but works quite as wanted:      Related to [Benjamin_Loison/YouTube/issues/1](https://codeberg.org/Benjamin_Loison/YouTube/issues/1).


53 KiB


56 KiB


52 KiB


51 KiB


52 KiB


51 KiB

Benjamin_Loison commented 2025-11-07 14:02:01 +01:00

Author

Owner

Copy Link

Copy Source

Related to Benjamin-Loison/android/issues/17.

Related to [Benjamin-Loison/android/issues/17](https://github.com/Benjamin-Loison/android/issues/17).

Benjamin_Loison commented 2025-11-07 14:50:14 +01:00

Author

Owner

Copy Link

Copy Source

Benjamin-Loison/android/issues/310 would help.

[Benjamin-Loison/android/issues/310](https://github.com/Benjamin-Loison/android/issues/310) would help.

Benjamin_Loison commented 2025-11-07 15:25:58 +01:00

Author

Owner

Copy Link

Copy Source

xmlstarlet select --template --value-of '//node[@text="Screenshot"]/@bounds' input.xml

[712,415][808,434]

DuckDuckGo and Google search Linux grep to variables and Linux grep groups to variables.

```bash xmlstarlet select --template --value-of '//node[@text="Screenshot"]/@bounds' input.xml ``` ``` [712,415][808,434] ``` DuckDuckGo and Google search *Linux grep to variables* and *Linux grep groups to variables*.

Benjamin_Loison commented 2025-11-07 15:53:30 +01:00

Author

Owner

Copy Link

Copy Source

\d and \\d do not work in the following.

The Stack Overflow answer 1892107 helps.

Bash script:

REGEX="\[([0-9]+),([0-9]+)\]\[([0-9]+),([0-9]+)\]"
bounds='[12,34][56,78]'
if [[ $bounds =~ $REGEX ]]
then
    echo $BASH_REMATCH
    for v in "${BASH_REMATCH[@]}"
    do
         echo "|$v|"
    done
    echo "1:|${BASH_REMATCH[1]}|"
    echo "2:|${BASH_REMATCH[2]}|"
    echo "3:|${BASH_REMATCH[3]}|"
    echo "4:|${BASH_REMATCH[4]}|"
fi

Output:

[12,34][56,78]
|[12,34][56,78]|
|12|
|34|
|56|
|78|
1:|12|
2:|34|
3:|56|
4:|78|

`\d` and `\\d` do not work in the following. [The Stack Overflow answer 1892107](https://stackoverflow.com/a/1892107) helps. <details> <summary>Bash script:</summary> ```bash REGEX="\[([0-9]+),([0-9]+)\]\[([0-9]+),([0-9]+)\]" bounds='[12,34][56,78]' if [[ $bounds =~ $REGEX ]] then echo $BASH_REMATCH for v in "${BASH_REMATCH[@]}" do echo "|$v|" done echo "1:|${BASH_REMATCH[1]}|" echo "2:|${BASH_REMATCH[2]}|" echo "3:|${BASH_REMATCH[3]}|" echo "4:|${BASH_REMATCH[4]}|" fi ``` </details> <details> <summary>Output:</summary> ``` [12,34][56,78] |[12,34][56,78]| |12| |34| |56| |78| 1:|12| 2:|34| 3:|56| 4:|78| ``` </details>

Benjamin_Loison commented 2025-11-07 16:28:56 +01:00

Author

Owner

Copy Link

Copy Source

DuckDuckGo search Bash function return.

The Stack Overflow answer 17336953 helps.

DuckDuckGo search *Bash function return*. [The Stack Overflow answer 17336953](https://stackoverflow.com/a/17336953) helps.

Benjamin_Loison referenced this issue 2025-11-07 19:23:35 +01:00

`inotifywait` #52

Benjamin_Loison commented 2025-11-07 21:10:21 +01:00

Author

Owner

Copy Link

Copy Source

/sdcard/Pictures/Screenshots/ CLOSE_WRITE,CLOSE .pending-1763150818-Screenshot_20251107-210658_F-Droid.png

~/.bashrc:

get_ui()
{
    adb exec-out uiautomator dump /dev/tty | sed 's/UI hierchary dumped to: \/dev\/tty//'
}

get_field_value()
{
    ui=$1
    xpath=$2
    field=$3
    echo "$ui" | xmlstarlet select --template --value-of "$xpath/@$field"
}

get_middle()
{
    ui=$1
    xpath=$2
    bounds=`get_field_value "$ui" "$xpath" bounds`
    REGEX="\[([0-9]+),([0-9]+)\]\[([0-9]+),([0-9]+)\]"
    if [[ $bounds =~ $REGEX ]]
    then
        middleX=$(((BASH_REMATCH[1] + BASH_REMATCH[3]) / 2))
        middleY=$(((BASH_REMATCH[2] + BASH_REMATCH[4]) / 2))
        echo $middleX $middleY
    fi
}

click_ui()
{
    ui=$1
    text=$2
    middle=`get_middle "$ui" "//node[@text=\"$text\"]"`
    adb shell input tap $middle
}

get_screen_height()
{
    output=`adb shell wm size`
    REGEX="Physical size: [0-9]+x([0-9]+)"
    if [[ $output =~ $REGEX ]]
    then
        screenHeight=${BASH_REMATCH[1]}
        echo $screenHeight
    fi
}

# [Benjamin_Loison/adb/issues/29](https://gitea.lemnoslife.com/Benjamin_Loison/adb/issues/29)
take_scrolling_screenshot()
{
    adb shell input keycombination KEYCODE_POWER KEYCODE_VOLUME_DOWN
    ui=`get_ui`
    click_ui "$ui" 'Capture more'

    ui=`get_ui`
    bottomBoundary=`get_field_value "$ui" '//node[starts-with(@content-desc, "Bottom boundary ")]' 'content-desc'`
    isTopToBottom=`[ "$bottomBoundary" != 'Bottom boundary 100 percent' ] && echo true || echo false`
    contentDesc=`[ $isTopToBottom = true ] && echo Bottom || echo Top`
    startPosition=`get_middle "$ui" "//node[starts-with(@content-desc, \"$contentDesc boundary \")]"`
    endY=`[ $isTopToBottom = true ] && get_screen_height || echo 0`
    adb shell input swipe $startPosition 0 $endY

    SCREENSHOT_FOLDER='/sdcard/Pictures/Screenshots'
    (
        fileName=`adb shell "
            cd /data/local/tmp/ &&
            LD_LIBRARY_PATH=. ./inotifywait -e MOVED_TO $SCREENSHOT_FOLDER
        " | cut -d ' ' -f 3-` && \
        adb pull "$SCREENSHOT_FOLDER/$fileName"
    ) &
    click_ui "$ui" 'Save'
}

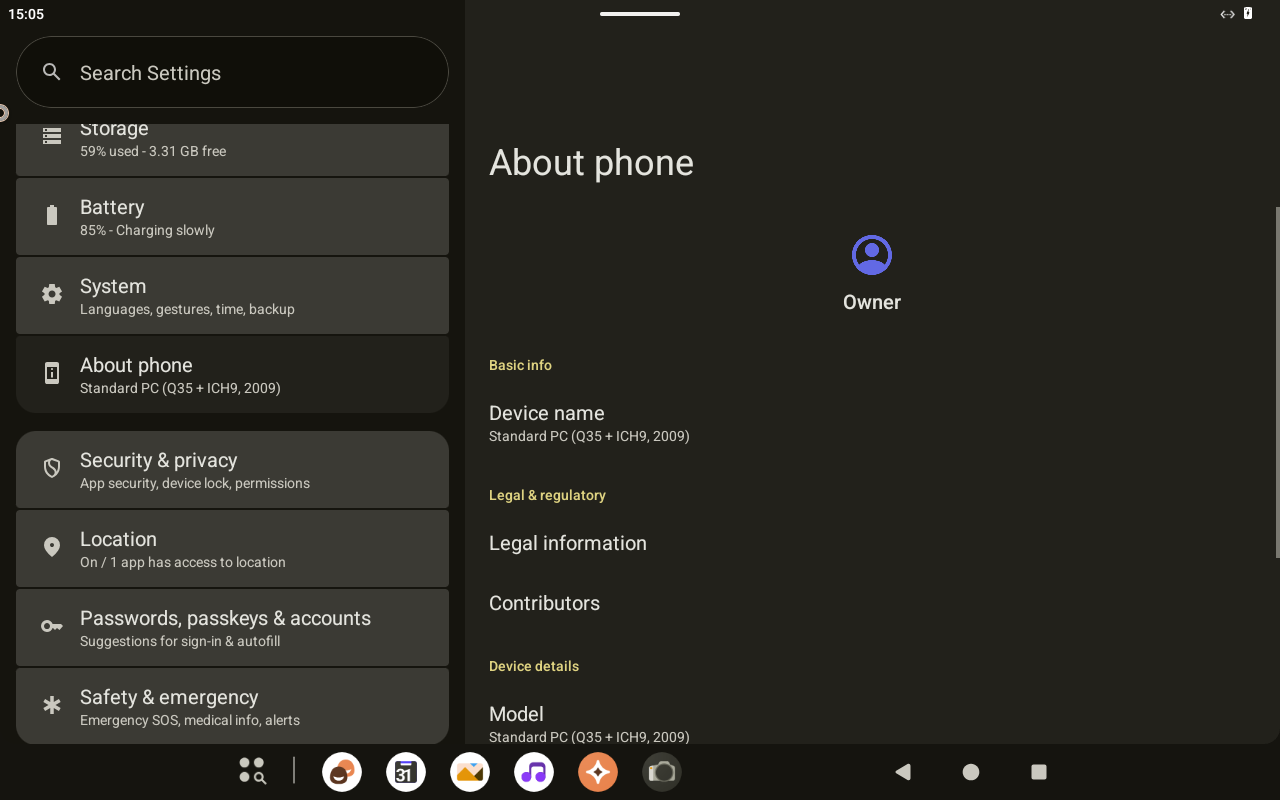

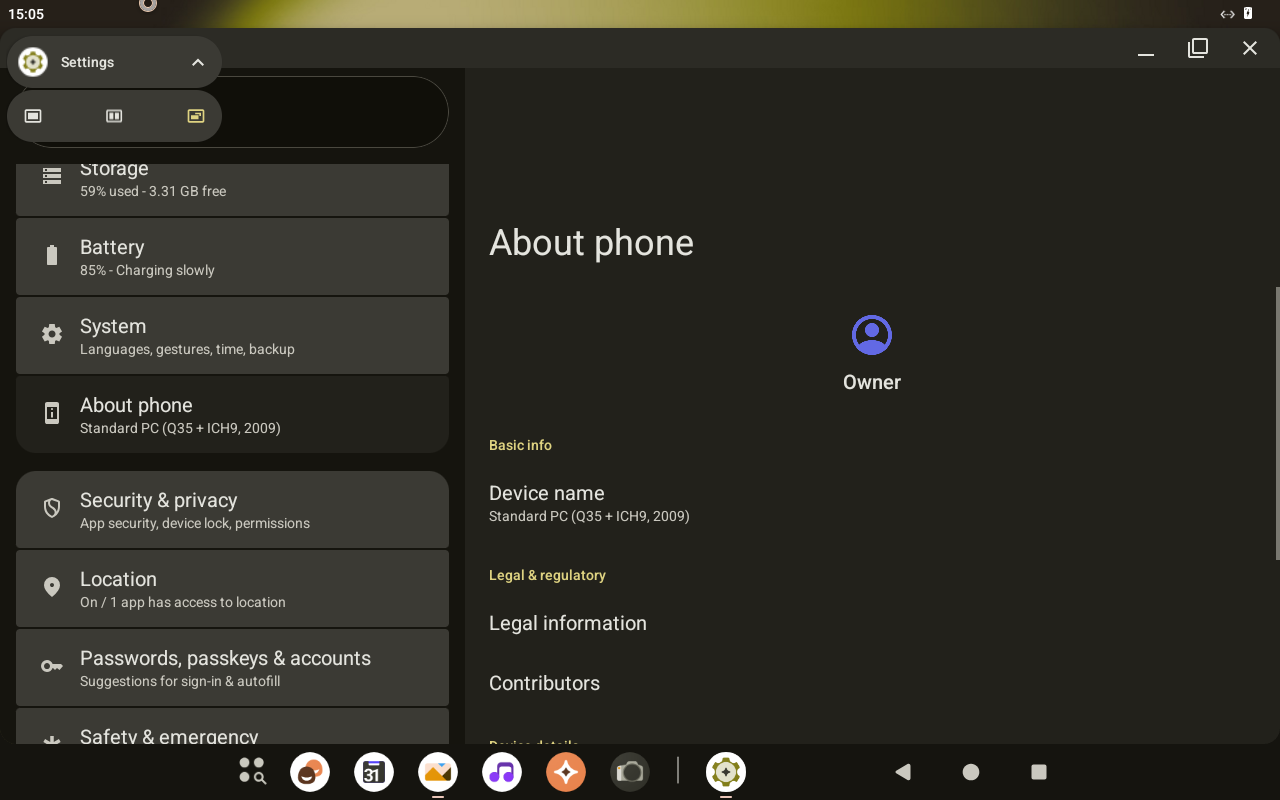

adb pull instead of inotifywait ends up with the screenshot taken without scrolling.

``` /sdcard/Pictures/Screenshots/ CLOSE_WRITE,CLOSE .pending-1763150818-Screenshot_20251107-210658_F-Droid.png ``` <details> <summary><code>~/.bashrc</code>:</summary> ```bash get_ui() { adb exec-out uiautomator dump /dev/tty | sed 's/UI hierchary dumped to: \/dev\/tty//' } get_field_value() { ui=$1 xpath=$2 field=$3 echo "$ui" | xmlstarlet select --template --value-of "$xpath/@$field" } get_middle() { ui=$1 xpath=$2 bounds=`get_field_value "$ui" "$xpath" bounds` REGEX="\[([0-9]+),([0-9]+)\]\[([0-9]+),([0-9]+)\]" if [[ $bounds =~ $REGEX ]] then middleX=$(((BASH_REMATCH[1] + BASH_REMATCH[3]) / 2)) middleY=$(((BASH_REMATCH[2] + BASH_REMATCH[4]) / 2)) echo $middleX $middleY fi } click_ui() { ui=$1 text=$2 middle=`get_middle "$ui" "//node[@text=\"$text\"]"` adb shell input tap $middle } get_screen_height() { output=`adb shell wm size` REGEX="Physical size: [0-9]+x([0-9]+)" if [[ $output =~ $REGEX ]] then screenHeight=${BASH_REMATCH[1]} echo $screenHeight fi } # [Benjamin_Loison/adb/issues/29](https://gitea.lemnoslife.com/Benjamin_Loison/adb/issues/29) take_scrolling_screenshot() { adb shell input keycombination KEYCODE_POWER KEYCODE_VOLUME_DOWN ui=`get_ui` click_ui "$ui" 'Capture more' ui=`get_ui` bottomBoundary=`get_field_value "$ui" '//node[starts-with(@content-desc, "Bottom boundary ")]' 'content-desc'` isTopToBottom=`[ "$bottomBoundary" != 'Bottom boundary 100 percent' ] && echo true || echo false` contentDesc=`[ $isTopToBottom = true ] && echo Bottom || echo Top` startPosition=`get_middle "$ui" "//node[starts-with(@content-desc, \"$contentDesc boundary \")]"` endY=`[ $isTopToBottom = true ] && get_screen_height || echo 0` adb shell input swipe $startPosition 0 $endY SCREENSHOT_FOLDER='/sdcard/Pictures/Screenshots' ( fileName=`adb shell " cd /data/local/tmp/ && LD_LIBRARY_PATH=. ./inotifywait -e MOVED_TO $SCREENSHOT_FOLDER " | cut -d ' ' -f 3-` && \ adb pull "$SCREENSHOT_FOLDER/$fileName" ) & click_ui "$ui" 'Save' } ``` </details> `adb pull` instead of `inotifywait` ends up with the screenshot taken without scrolling.

Benjamin_Loison commented 2025-11-07 22:24:42 +01:00

Author

Owner

Copy Link

Copy Source

adb: error: failed to stat remote object '/sdcard/Pictures/Screenshots/Screenshot_20251107-211406_Permission': No such file or directory

adb pull "/sdcard/Pictures/Screenshots/Screenshot_20251107-211357_Permission controller.png"

/sdcard/Pictures/Screenshots/Screenshot_20251107-211357_Permission controller.png: 1 file pulled, 0 skipped. 23.2 MB/s (42788 bytes in 0.002s)

``` adb: error: failed to stat remote object '/sdcard/Pictures/Screenshots/Screenshot_20251107-211406_Permission': No such file or directory ``` ```bash adb pull "/sdcard/Pictures/Screenshots/Screenshot_20251107-211357_Permission controller.png" ``` ``` /sdcard/Pictures/Screenshots/Screenshot_20251107-211357_Permission controller.png: 1 file pulled, 0 skipped. 23.2 MB/s (42788 bytes in 0.002s) ```

Benjamin_Loison commented 2025-11-07 22:30:21 +01:00

Author

Owner

Copy Link

Copy Source

I edited above take_scrolling_screenshot to work fine with spaces in file name.

I edited above `take_scrolling_screenshot` to work fine with spaces in file name.

Benjamin_Loison commented 2025-11-07 22:33:34 +01:00

Author

Owner

Copy Link

Copy Source

Could delete the associated screenshot(s) on the device.

Could delete the associated screenshot(s) on the device.

Benjamin_Loison commented 2025-11-07 23:43:46 +01:00

Author

Owner

Copy Link

Copy Source

Let us prefer clicking on Capture more text middle than the associated symbol.

Let us prefer clicking on *Capture more* text middle than the associated symbol.

Benjamin_Loison commented 2025-11-08 16:49:03 +01:00

Author

Owner

Copy Link

Copy Source

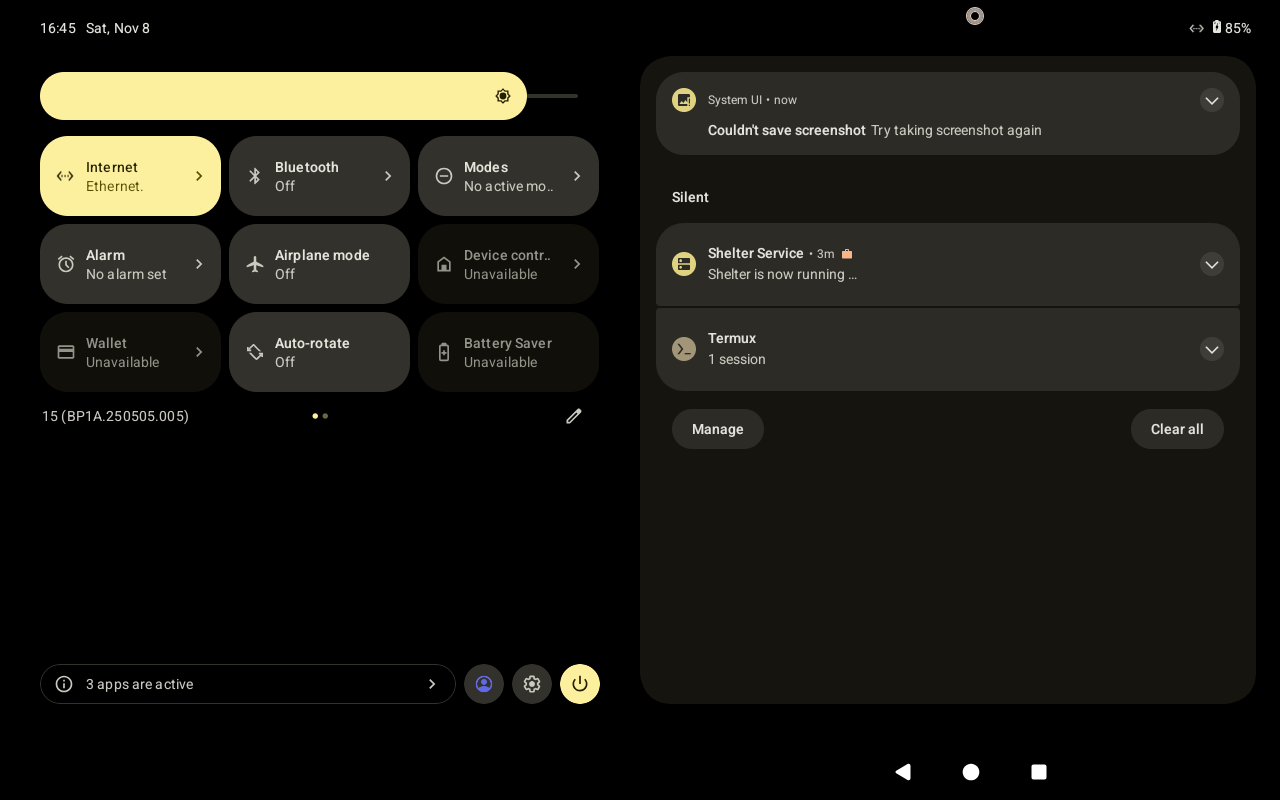

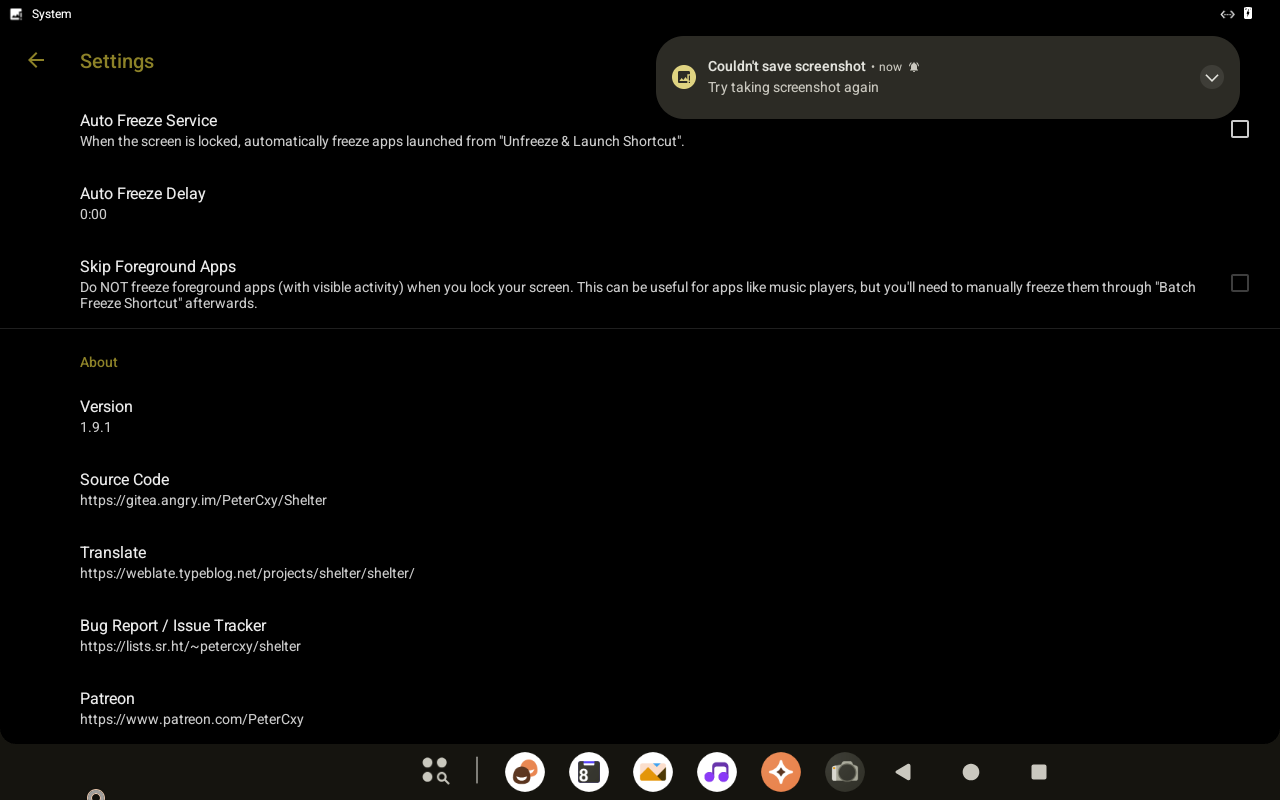

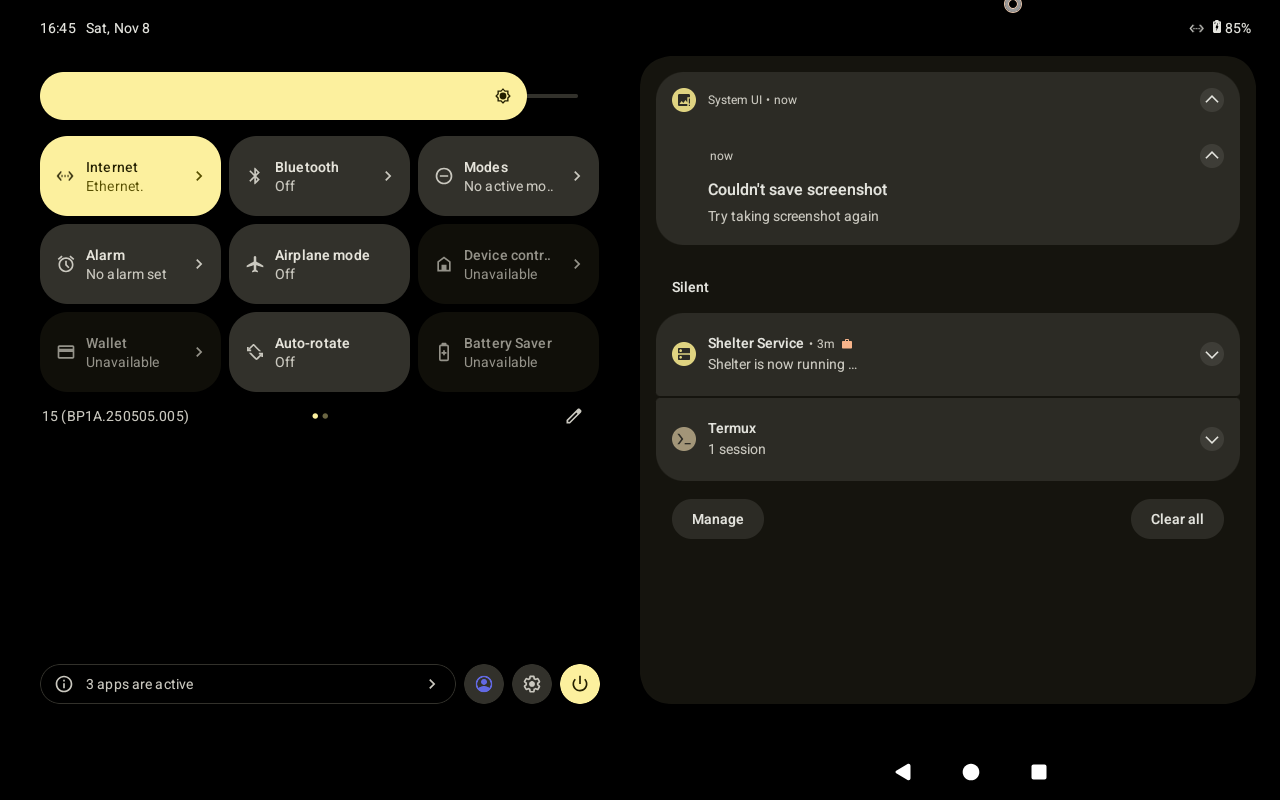

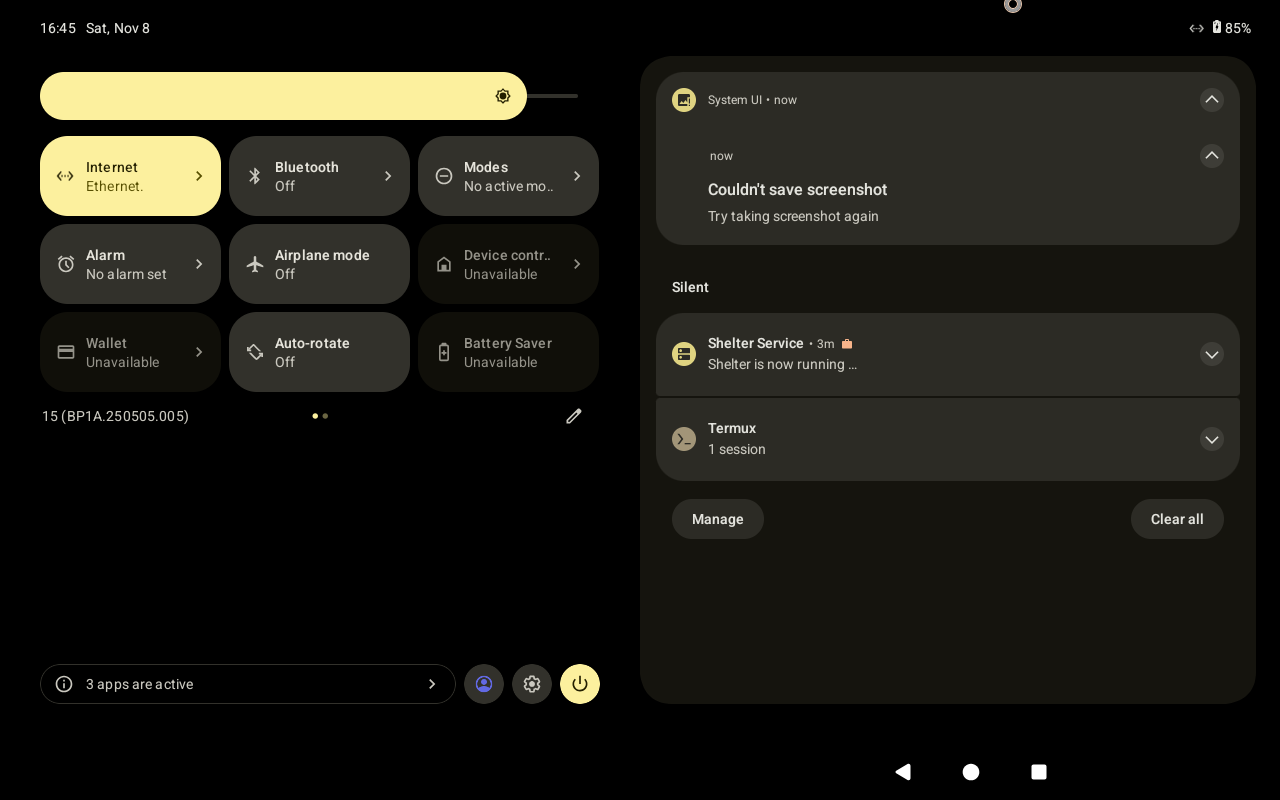

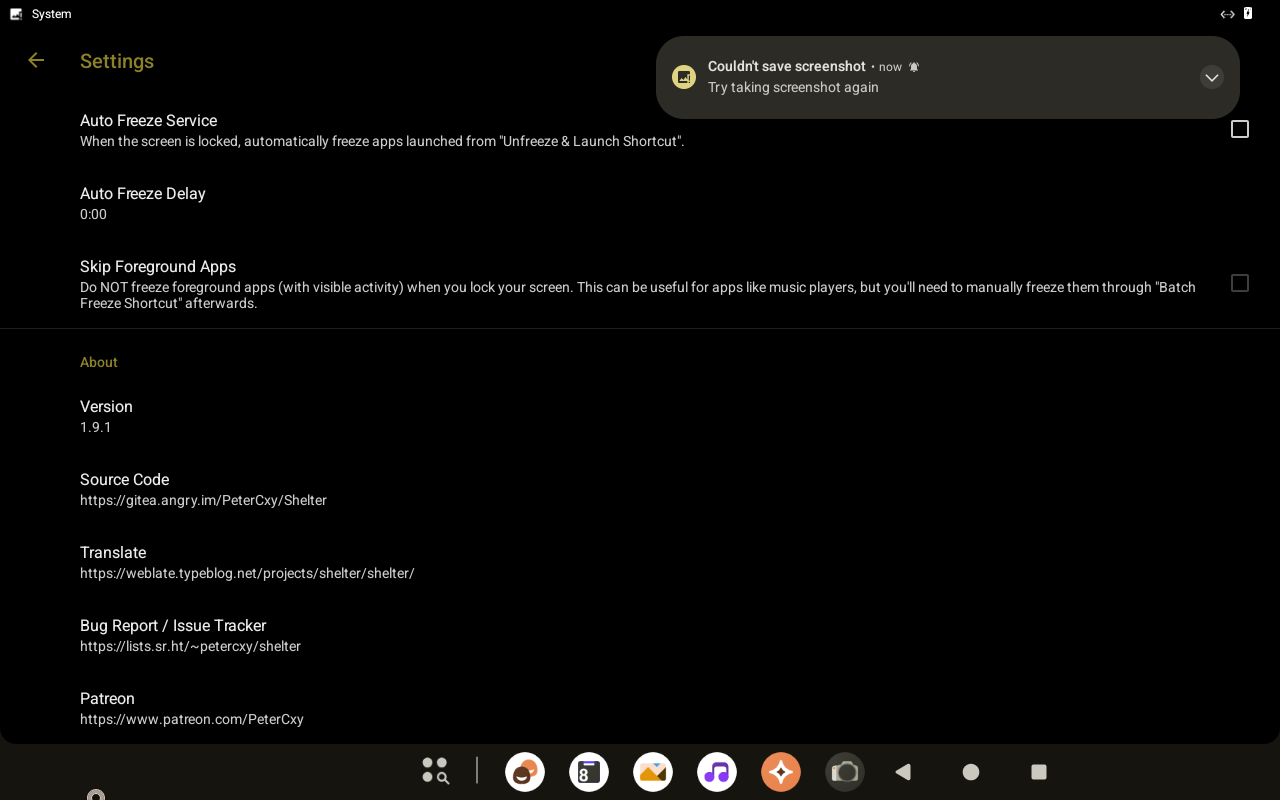

In Shelter in-app settings:

UI dump where expect Capture more seems to contain it anyway:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<hierarchy rotation="0">
  <node index="0" text="" resource-id="" class="android.widget.FrameLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][1280,800]" drawing-order="0" hint="">
    <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][1280,800]" drawing-order="1" hint="">
      <node index="0" text="" resource-id="android:id/content" class="android.widget.FrameLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][1280,800]" drawing-order="2" hint="">
        <node index="0" text="" resource-id="" class="android.widget.FrameLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="true" focused="true" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][1280,800]" drawing-order="1" hint="">
          <node index="0" text="" resource-id="com.android.systemui:id/screenshot_static" class="android.view.ViewGroup" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][1280,800]" drawing-order="1" hint="">
            <node index="0" text="" resource-id="com.android.systemui:id/screenshot_preview_border" class="android.view.View" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[12,584][148,672]" drawing-order="3" hint=""/>
            <node index="1" text="" resource-id="com.android.systemui:id/screenshot_preview" class="android.widget.ImageView" package="com.android.systemui" content-desc="Edit screenshot" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[16,588][144,668]" drawing-order="4" hint=""/>
            <node index="2" text="" resource-id="com.android.systemui:id/screenshot_badge" class="android.widget.ImageView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[92,616][148,672]" drawing-order="8" hint=""/>
            <node index="3" text="" resource-id="com.android.systemui:id/actions_container_background" class="android.widget.FrameLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,680][507,744]" drawing-order="6" hint="">
              <node index="0" text="" resource-id="com.android.systemui:id/actions_container" class="android.widget.HorizontalScrollView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[20,688][487,736]" drawing-order="1" hint="">
                <node index="0" text="" resource-id="com.android.systemui:id/screenshot_actions" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[20,688][487,736]" drawing-order="1" hint="">
                  <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="Share screenshot" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[20,688][117,736]" drawing-order="1" hint="">
                    <node index="0" text="" resource-id="com.android.systemui:id/overlay_action_chip_icon" class="android.widget.ImageView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[32,700][56,724]" drawing-order="1" hint=""/>
                    <node index="1" text="Share" resource-id="com.android.systemui:id/overlay_action_chip_text" class="android.widget.TextView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[64,702][101,721]" drawing-order="2" hint=""/>
                  </node>
                  <node index="1" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="Edit screenshot" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[129,688][214,736]" drawing-order="2" hint="">
                    <node index="0" text="" resource-id="com.android.systemui:id/overlay_action_chip_icon" class="android.widget.ImageView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[141,700][165,724]" drawing-order="1" hint=""/>
                    <node index="1" text="Edit" resource-id="com.android.systemui:id/overlay_action_chip_text" class="android.widget.TextView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[173,702][198,721]" drawing-order="2" hint=""/>
                  </node>
                  <node index="2" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="Delete screenshot" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[226,688][328,736]" drawing-order="3" hint="">
                    <node index="0" text="" resource-id="com.android.systemui:id/overlay_action_chip_icon" class="android.widget.ImageView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[238,700][262,724]" drawing-order="1" hint=""/>
                    <node index="1" text="Delete" resource-id="com.android.systemui:id/overlay_action_chip_text" class="android.widget.TextView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[270,702][312,721]" drawing-order="2" hint=""/>
                  </node>
                  <node index="3" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="Capture more" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[340,688][487,736]" drawing-order="4" hint="">
                    <node index="0" text="" resource-id="com.android.systemui:id/overlay_action_chip_icon" class="android.widget.ImageView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[352,700][376,724]" drawing-order="1" hint=""/>
                    <node index="1" text="Capture more" resource-id="com.android.systemui:id/overlay_action_chip_text" class="android.widget.TextView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[384,702][471,721]" drawing-order="2" hint=""/>
                  </node>
                </node>
              </node>
            </node>
          </node>
        </node>
      </node>
    </node>
  </node>
</hierarchy>

but it does not seem to actually show it and work as wanted.

In Shelter in-app settings:    <details> <summary>UI dump where expect <i>Capture more</i> seems to contain it anyway:</summary> ```xml <?xml version="1.0" encoding="UTF-8" standalone="yes"?> <hierarchy rotation="0"> <node index="0" text="" resource-id="" class="android.widget.FrameLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][1280,800]" drawing-order="0" hint=""> <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][1280,800]" drawing-order="1" hint=""> <node index="0" text="" resource-id="android:id/content" class="android.widget.FrameLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][1280,800]" drawing-order="2" hint=""> <node index="0" text="" resource-id="" class="android.widget.FrameLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="true" focused="true" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][1280,800]" drawing-order="1" hint=""> <node index="0" text="" resource-id="com.android.systemui:id/screenshot_static" class="android.view.ViewGroup" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][1280,800]" drawing-order="1" hint=""> <node index="0" text="" resource-id="com.android.systemui:id/screenshot_preview_border" class="android.view.View" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[12,584][148,672]" drawing-order="3" hint=""/> <node index="1" text="" resource-id="com.android.systemui:id/screenshot_preview" class="android.widget.ImageView" package="com.android.systemui" content-desc="Edit screenshot" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[16,588][144,668]" drawing-order="4" hint=""/> <node index="2" text="" resource-id="com.android.systemui:id/screenshot_badge" class="android.widget.ImageView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[92,616][148,672]" drawing-order="8" hint=""/> <node index="3" text="" resource-id="com.android.systemui:id/actions_container_background" class="android.widget.FrameLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,680][507,744]" drawing-order="6" hint=""> <node index="0" text="" resource-id="com.android.systemui:id/actions_container" class="android.widget.HorizontalScrollView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[20,688][487,736]" drawing-order="1" hint=""> <node index="0" text="" resource-id="com.android.systemui:id/screenshot_actions" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[20,688][487,736]" drawing-order="1" hint=""> <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="Share screenshot" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[20,688][117,736]" drawing-order="1" hint=""> <node index="0" text="" resource-id="com.android.systemui:id/overlay_action_chip_icon" class="android.widget.ImageView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[32,700][56,724]" drawing-order="1" hint=""/> <node index="1" text="Share" resource-id="com.android.systemui:id/overlay_action_chip_text" class="android.widget.TextView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[64,702][101,721]" drawing-order="2" hint=""/> </node> <node index="1" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="Edit screenshot" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[129,688][214,736]" drawing-order="2" hint=""> <node index="0" text="" resource-id="com.android.systemui:id/overlay_action_chip_icon" class="android.widget.ImageView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[141,700][165,724]" drawing-order="1" hint=""/> <node index="1" text="Edit" resource-id="com.android.systemui:id/overlay_action_chip_text" class="android.widget.TextView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[173,702][198,721]" drawing-order="2" hint=""/> </node> <node index="2" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="Delete screenshot" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[226,688][328,736]" drawing-order="3" hint=""> <node index="0" text="" resource-id="com.android.systemui:id/overlay_action_chip_icon" class="android.widget.ImageView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[238,700][262,724]" drawing-order="1" hint=""/> <node index="1" text="Delete" resource-id="com.android.systemui:id/overlay_action_chip_text" class="android.widget.TextView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[270,702][312,721]" drawing-order="2" hint=""/> </node> <node index="3" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.systemui" content-desc="Capture more" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[340,688][487,736]" drawing-order="4" hint=""> <node index="0" text="" resource-id="com.android.systemui:id/overlay_action_chip_icon" class="android.widget.ImageView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[352,700][376,724]" drawing-order="1" hint=""/> <node index="1" text="Capture more" resource-id="com.android.systemui:id/overlay_action_chip_text" class="android.widget.TextView" package="com.android.systemui" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[384,702][471,721]" drawing-order="2" hint=""/> </node> </node> </node> </node> </node> </node> </node> </node> </node> </hierarchy> ``` </details> but it does not seem to actually show it and work as wanted.


70 KiB


72 KiB


67 KiB

Benjamin_Loison commented 2025-11-08 16:49:25 +01:00

Author

Owner

Copy Link

Copy Source

#18 may help.

#18 may help.

Benjamin_Loison commented 2025-12-31 15:00:09 +01:00

Author

Owner

Copy Link

Copy Source

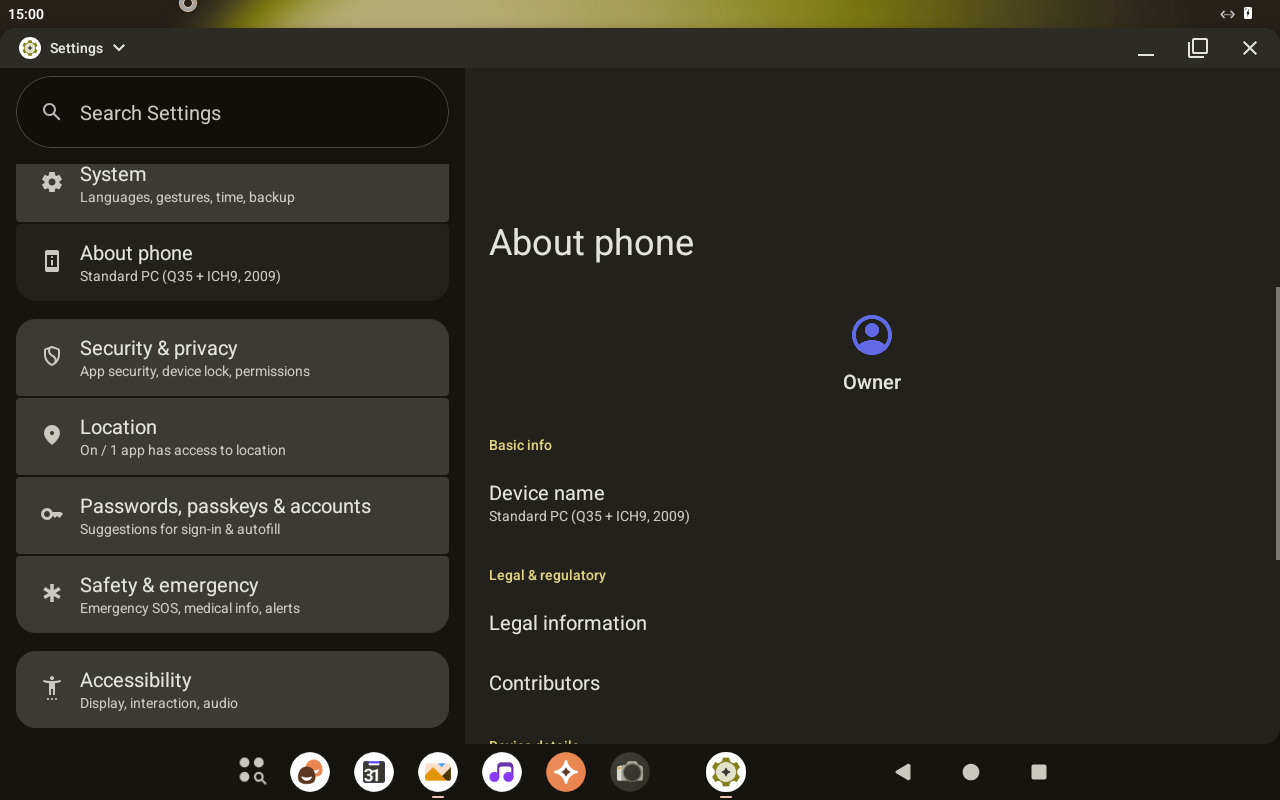

get_ui results in ERROR: could not get idle state. on my Debian 13 GNOME laptop Virtual Machine Manager LineageOS (trust) virtual machine:

Left icon results in:

does not help.

`get_ui` results in `ERROR: could not get idle state.` on my Debian 13 GNOME laptop Virtual Machine Manager *LineageOS (trust)* virtual machine:   Left icon results in:  does not help.


106 KiB


105 KiB


95 KiB

Sign in to join this conversation.

No Branch/Tag Specified

Branches Tags

No results found.

No results found.

Labels

No items

No labels

Milestone

No items

No Milestone

Projects

Clear projects

No projects

Assignees

Clear assignees

Benjamin_Loison (Benjamin Loison)

No Assignees

1 Participants

Notifications

Subscribe

Due Date

No due date set.

Dependencies

No dependencies set.

Reference: Benjamin_Loison/adb#29
