Is img_as_float more precise than .convert('F') #33

New Issue
Open
opened 2024-04-03 17:07:23 +02:00 by Benjamin_Loison · 2 comments
Benjamin_Loison commented 2024-04-03 17:07:23 +02:00
Owner
Copy Link
Copy Source

I would say so as the result still has the 3 channels for img_as_float contrarily to .convert('F').
Hence computation seems to take more time:

1%|          | 1/100 [04:10<6:53:27, 250.58s/it]

Can proceed in parallel somehow if it is not already the case? It seems to only consume a single core.

Note that I have 16 cores on my laptop and 24 on my computer.

Using gzip only reduces 369M to 343M. Note that if want to mean then have to pay attention as all images may not fit in 32 GB of memory. Could otherwise use an OVH C2-120 with 32vCores and 120 GB of RAM at €1.48 ex. VAT/hour.

Could compute mean in real-time to avoid too much storing.

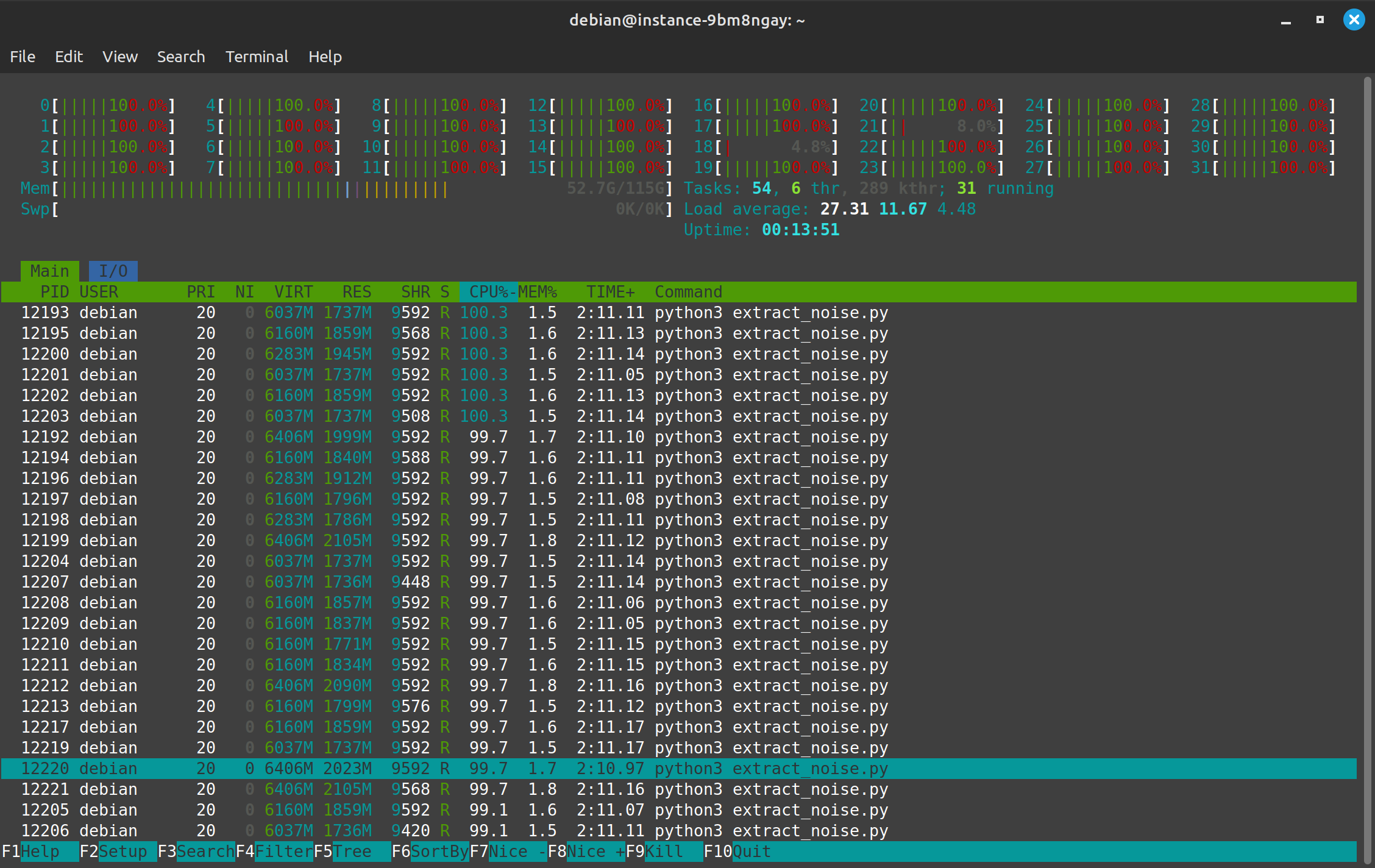

With Pool(30) logs attached.

Should understand what is blocking, otherwise can rent many small instances.

Related to #8 and #19.

I would say so as the result still has the 3 channels for `img_as_float` contrarily to `.convert('F')`. Hence computation seems to take more time: ``` 1%| | 1/100 [04:10<6:53:27, 250.58s/it] ``` Can proceed in parallel somehow if it is not already the case? It seems to only consume a single core. Note that I have 16 cores on my laptop and 24 on my computer. Using gzip only reduces `369M` to `343M`. Note that if want to mean then have to pay attention as all images may not fit in 32 GB of memory. Could otherwise use an OVH C2-120 with 32vCores and 120 GB of RAM at €1.48 ex. VAT/hour. Could compute mean in real-time to avoid too much storing. ![image](/attachments/afbb6be7-ee2d-452c-9e0a-431af861002b) With `Pool(30)` logs attached. Should understand what is blocking, otherwise can rent many small instances. Related to #8 and #19.
543 KiB
logs.txt
6.3 KiB
Benjamin_Loison added the enhancementmedium priorityquick labels 2024-04-03 17:07:23 +02:00
Benjamin_Loison commented 2024-04-04 11:59:40 +02:00
Author
Owner
Copy Link
Copy Source

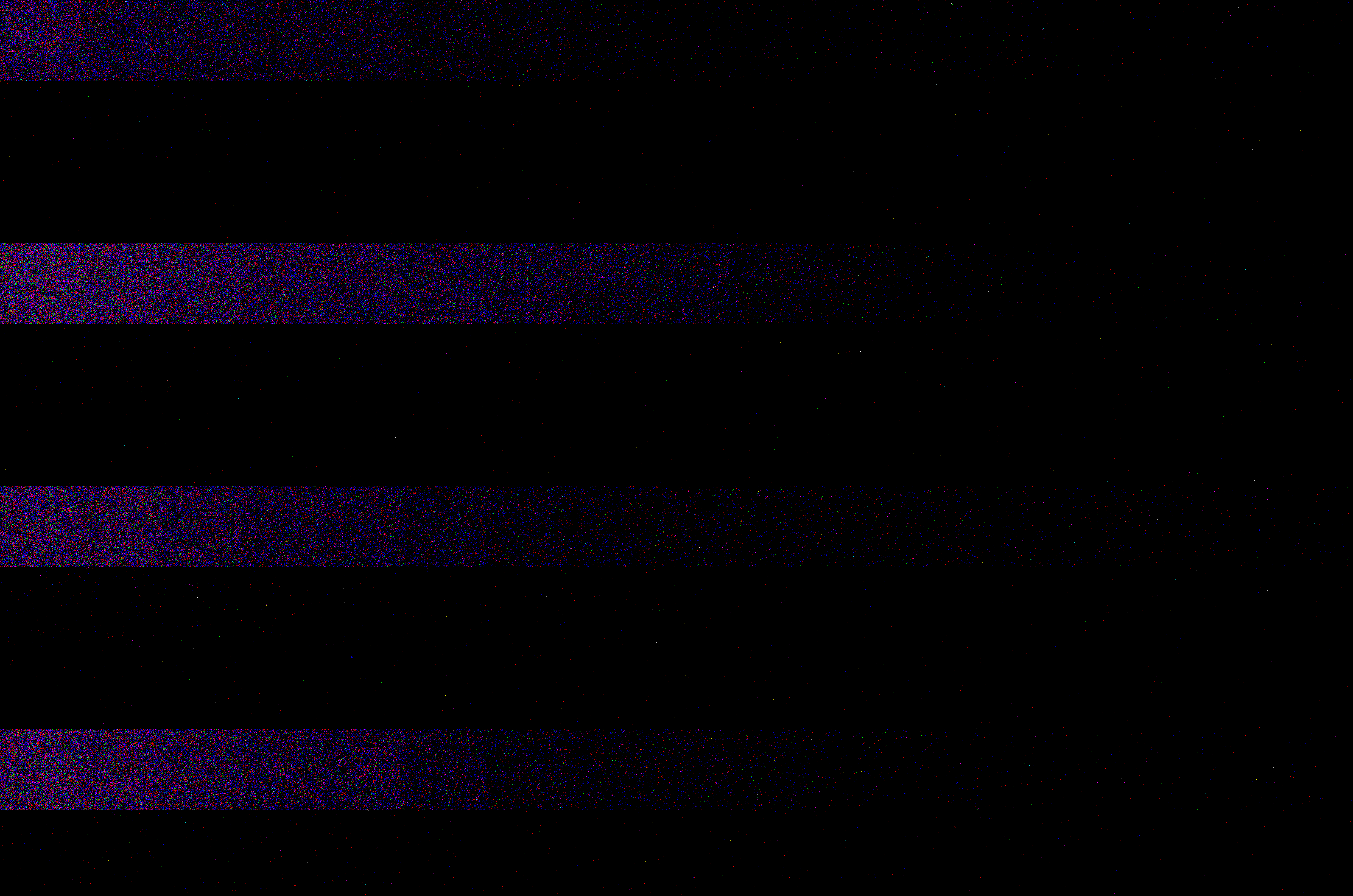

Computing the PRNU estimate on the 100 images flat-field images for NikonD7000

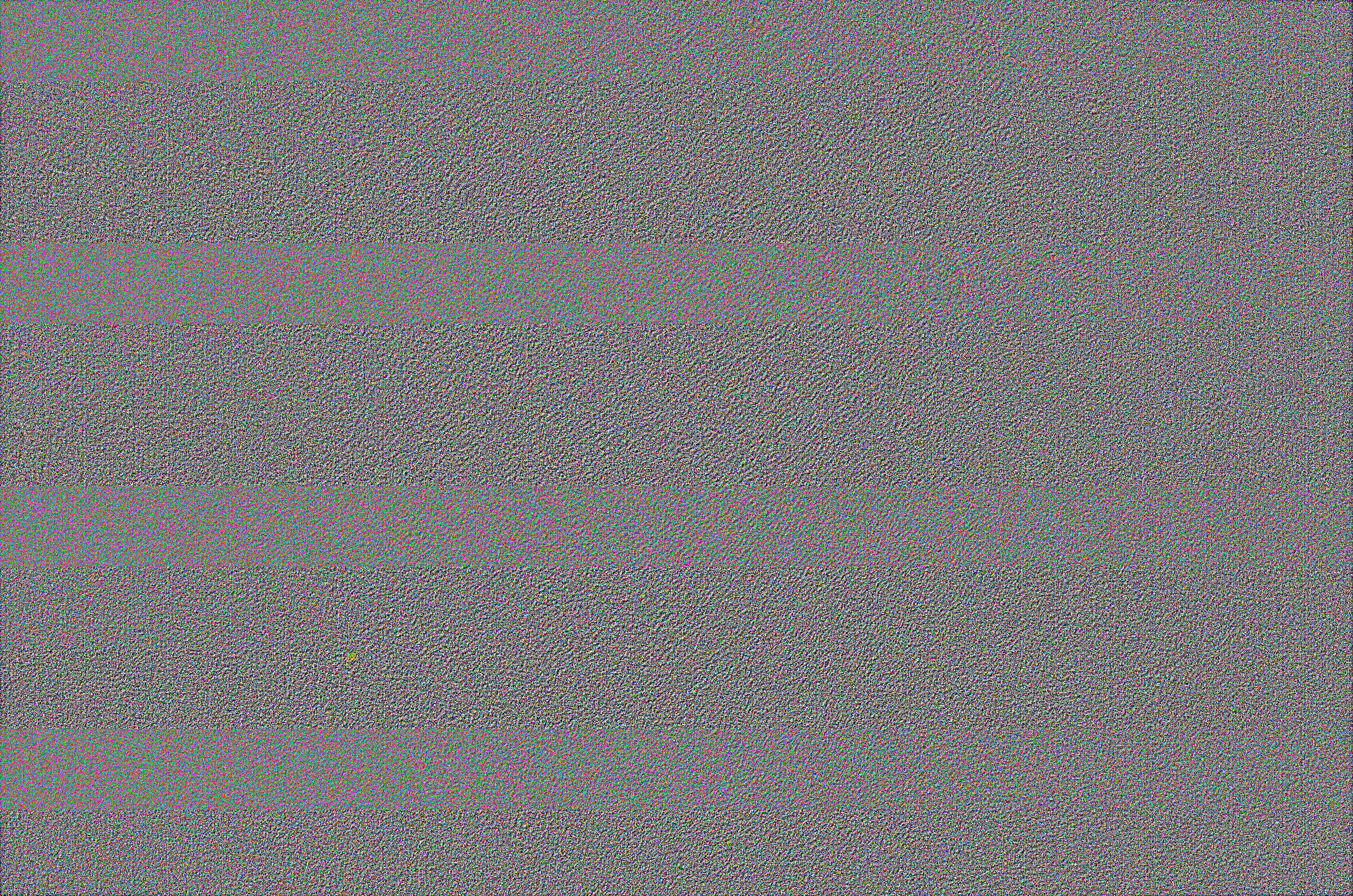

Seems to have possibly interesting PRNU pattern attached (_{0,1} are different GIMP Brightness-Contrast... rendering).

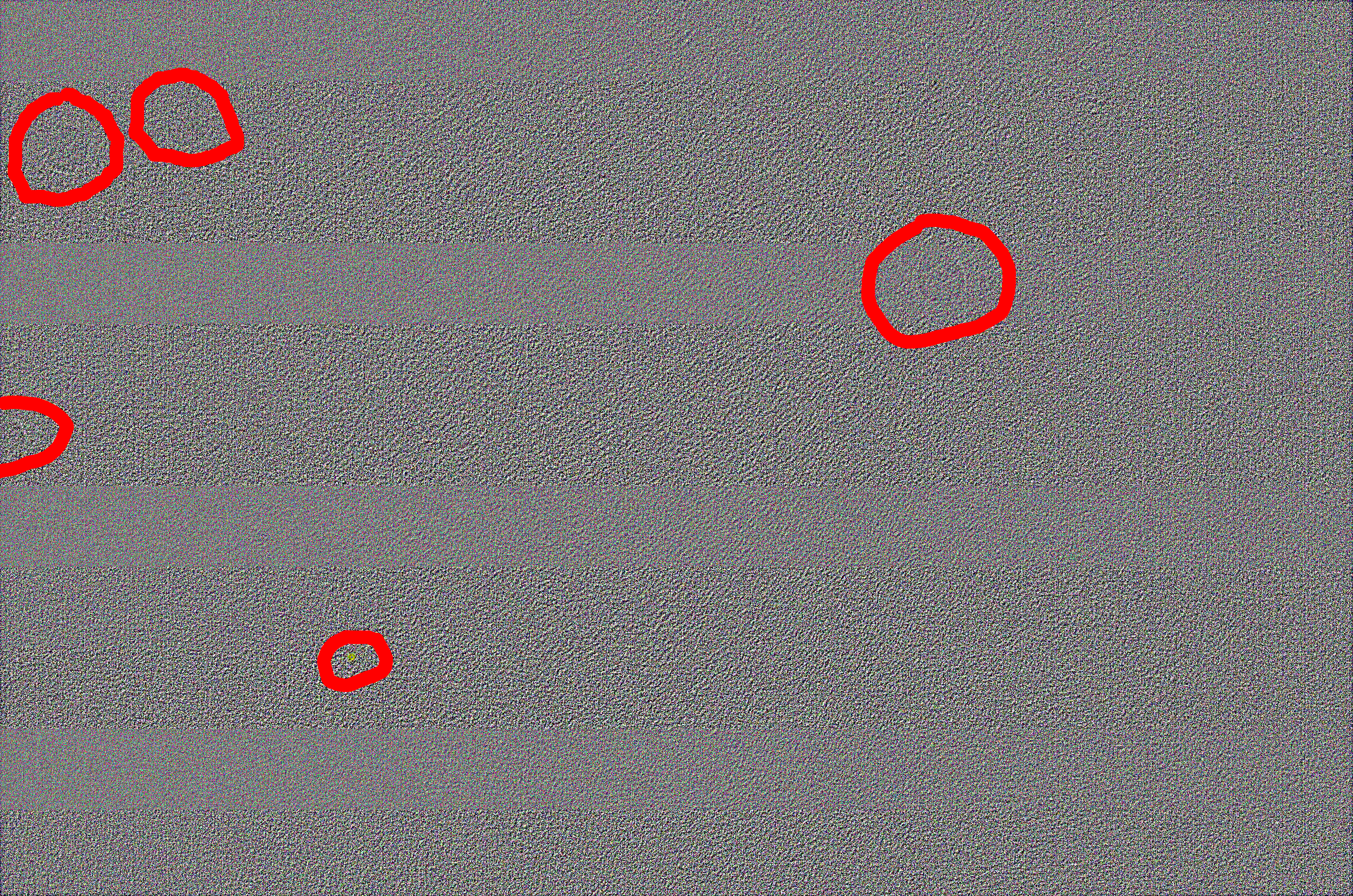

Are we seeing how the camera internally works? What are the yellow dot and circles? Is it related to Wikipedia: Machine Identification Code?

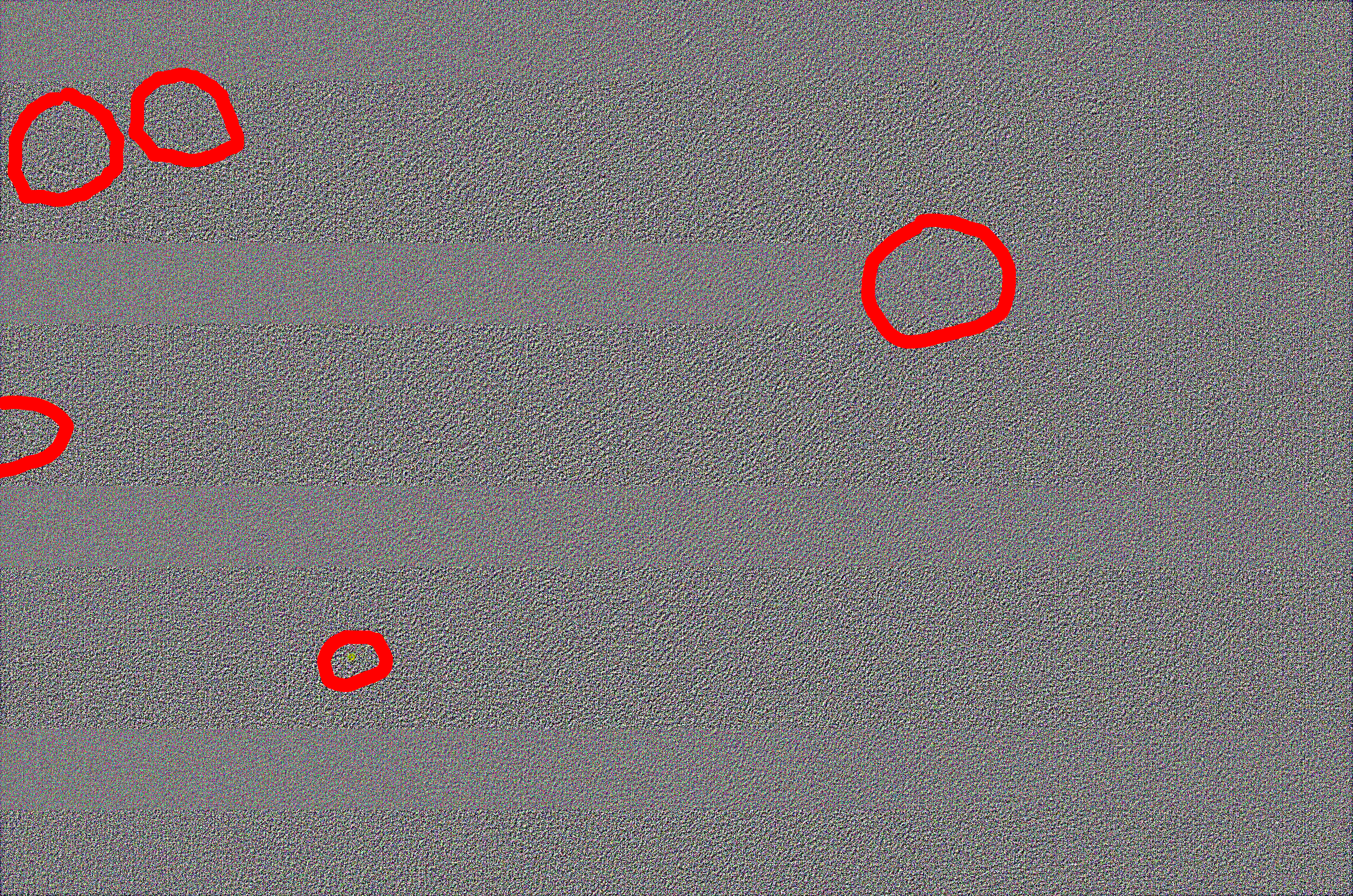

np_array_0_annotated

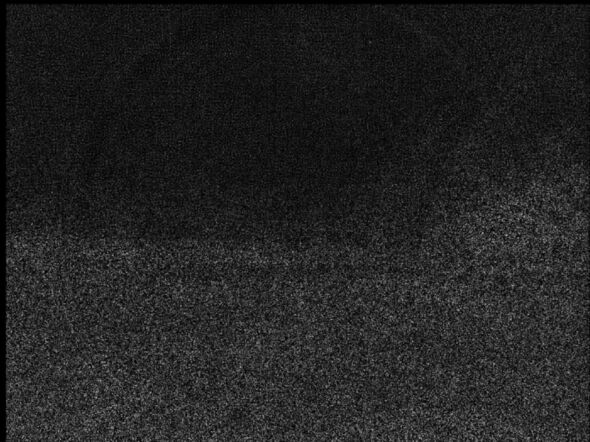

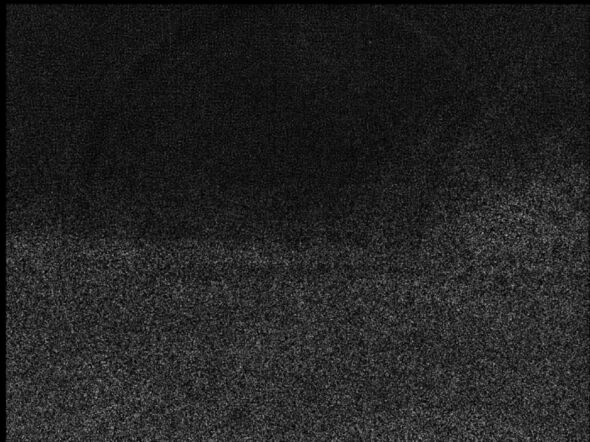

Is it like figure I a of the internship offer?

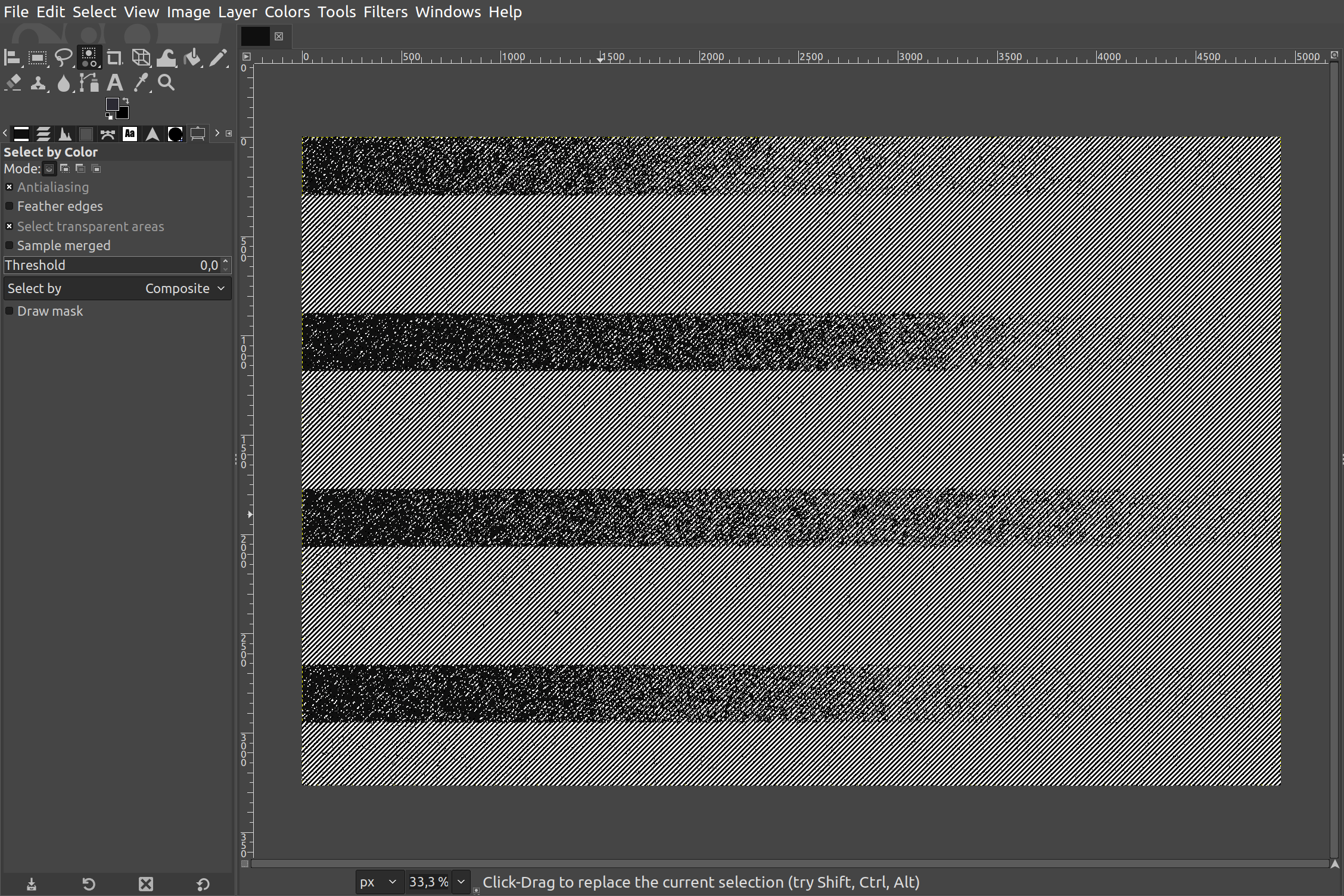

Screenshot from 2024-04-04 11-54-12

Computing the PRNU estimate on [the 100 images flat-field images for NikonD7000](http://loki.disi.unitn.it/RAISE/Flat-field/Flat-field.zip) Seems to have possibly interesting PRNU pattern attached (`_{0,1}` are different GIMP `Brightness-Contrast...` rendering). Are we seeing how the camera internally works? What are the yellow dot and circles? Is it related to [Wikipedia: Machine Identification Code](https://en.wikipedia.org/wiki/Machine_Identification_Code)? ![np_array_0_annotated](/attachments/8142fb02-ac22-4518-a12c-aaaec6f3e094) Is it like figure I a of the internship offer? ![image](/attachments/1b8a12e7-b960-45a3-b2aa-4e078658195e) ![Screenshot from 2024-04-04 11-54-12](/attachments/69c9d511-1057-427c-b403-92376b043ccb)
10 MiB
16 MiB
1021 KiB
Screenshot from 2024-04-04 11-54-12.png
684 KiB
10 MiB
297 KiB
np_array_0.png np_array.png np_array_1.png
Benjamin_Loison commented 2024-04-06 15:52:14 +02:00
Author
Owner
Copy Link
Copy Source

Should use a slider to compare both images like leafmap.org/notebooks/76_image_comparison/.

What would be interesting would be able to do so in GIMP to be able to modify the brightness and contrast.

Related to Benjamin_Loison/gimp/issues/22.

Should use a slider to compare both images like [leafmap.org/notebooks/76_image_comparison/](https://leafmap.org/notebooks/76_image_comparison/). What would be interesting would be able to do so in GIMP to be able to modify the brightness and contrast. Related to [Benjamin_Loison/gimp/issues/22](https://gitlab.gnome.org/Benjamin_Loison/gimp/-/issues/22).
